Geogrids: A different way of thinking

by Jonathan Cook, on 19-Aug-2019 11:18:11

Cement and chemical stabilisation is not the only green and cost-effective alternative to dig and replace for delivering a robust and long-lasting roads network.

Two of the central pillars of the UK Government’s Road Investment Strategy are to reduce maintenance costs by 30-50%, compared with current levels, and to reduce the environmental impact of the road network.

The green roads agenda
The green roads agenda will, of course, be achieved by reducing carbon emissions of vehicles and also by building-in environmental measures to all new schemes – and rectifying environmentally-poor designs when repairing, maintaining and upgrading existing roads.

Geotechnics has a lot to offer in this regard, particularly when building new roads over weak and/or waterlogged ground. Thankfully, today’s engineers are less likely to resort to the traditional approach of dig and replace and will consider a number of different approaches to increase bearing capacity, that are not only faster and more cost-effective but that are greener too – such as chemical stabilisation and the use of stabilisation geogrids.

The limitations of chemical stabilisation
While chemical stabilisation – using lime, cement and other hydraulic binders – can reduce environmental impact by reducing the amount of material having to be disposed of, and the amount of imported material needed (with the associated reduction in lorry movements), the method does have its limitations.

Chemical stabilisationChemical Stabilisation

For a start, not all soils are suitable for chemical stabilisation – the method is most effective on high plasticity clays, silts and fine sands – and soils containing sulphates can react negatively to the binder. Testing is needed to confirm suitability prior to treatment and the ground needs to be left to cure for a few days afterward, before construction can continue. There is also a risk of the treated soil deteriorating if there are frequent wet-dry cycles, which can lead to cracking.

Additionally, stabilisation plant and equipment is heavy, making it difficult to reach the areas with the softest soils, and treatment cannot be carried out in heavy rain.

Tensar TriAx geogrid: fast, simple and cost-effective
Installing Tensar TriAx geogrid in a capping layer or in the unbound layers of a road pavement, on the other hand, is often faster, simpler and more cost-effective and delivers significant improvements in bearing capacity.

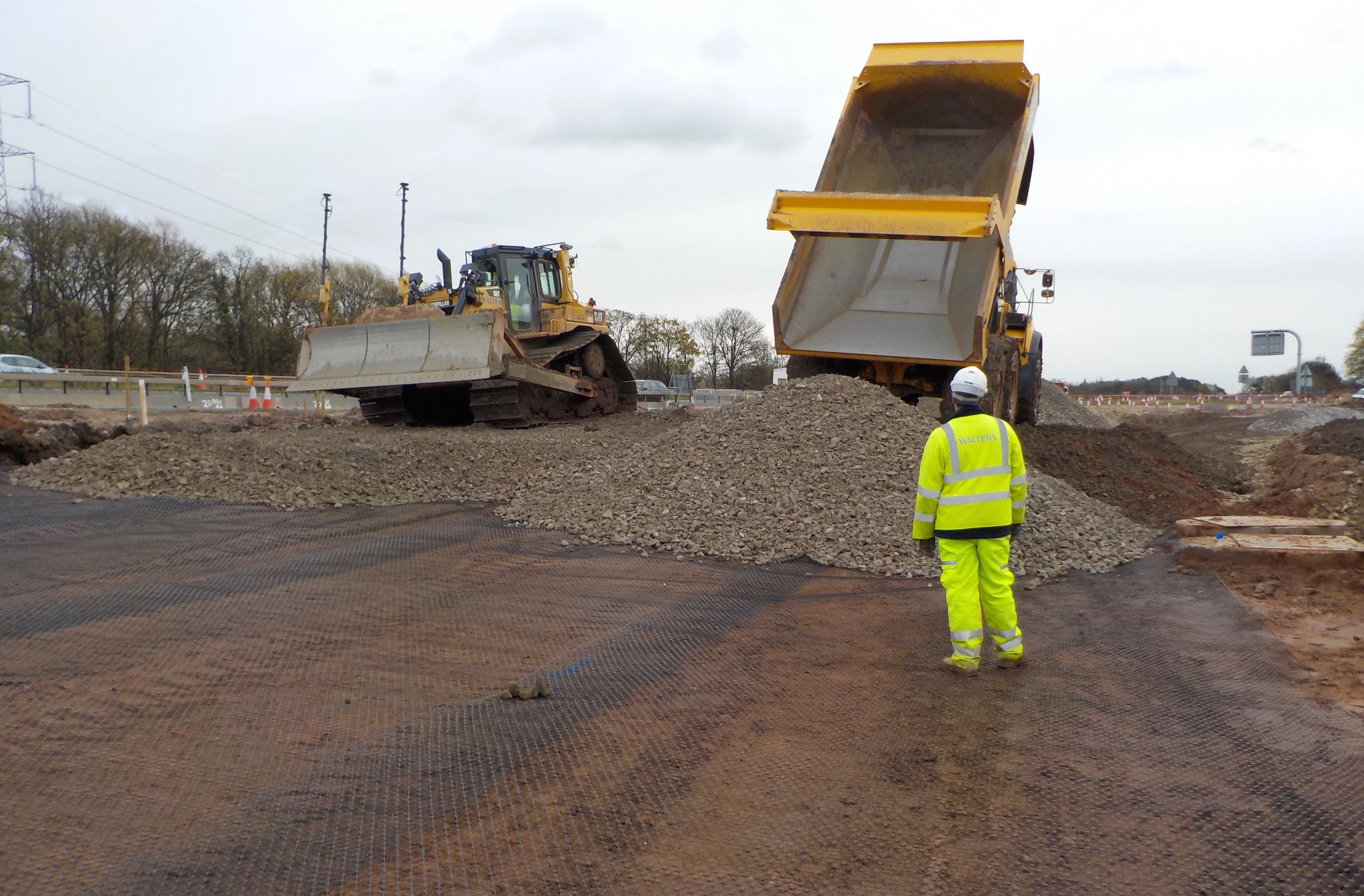

TriAx being filled

Up to £2m was saved on the construction of the A556 improvement scheme in Cheshire by using geogrid to mechanically stabilise the new road’s founding aggregate layers.

An aggregate layer stabilised with TriAx geogrids performs as a composite, due to the interlocking mechanism and particle confinement that develops between the aggregate and the geogrid. This Tensar ‘mechanically stabilised layer’ provides more effective support to the entire pavement structure than aggregate alone.

TriAx aggregate

Tensar TriAx interlocks with aggregate particles to create a mechanically stabilised layer.

The benefits of TriAx
When compared with an unstabilised aggregate layer, a mechanically stabilised layer incorporating TriAx geogrids can:

  • Increase bearing capacity
  • Control differential settlement
  • Cut construction CO2 emissions by up to 50%
  • Reduce the excavation needed.

Learn more about TriAx

Spectra Pavement Optimisation
Since 2014, all of Tensar’s flexible road pavement designs have used TriAx, as part of the Tensar Spectra Pavement Optimisation system.

This is a tried and tested approach, accepted by many highways authorities around the world, to provide stable foundations for new roads and to help repair roads damaged through settlement of underlying ground or the pavement structure itself.

FARRRS 1 (2)Tensar Spectra Pavement Optimisation saved £0.5m, reduced material use by 7,000t and cut three weeks off construction of the Finningley and Rossington Regeneration Route Scheme in Yorkshire, plus increased road service life by 60%.

TriAx can be used with every soil type, there are no requirements to assess suitability and they can be installed by hand, without specialist skills, in any weather. Plus there is no ‘curing time’: construction of the road pavement can proceed immediately.

Learn more about Spectra Pavement Optimisation

The environmental benefits of geogrids
From an environmental point of view, like chemical stabilisation, Tensar geogrids can reduce the amount of unsuitable material that has to be excavated and, in some cases, remove the need entirely.

They can also be used with recycled, site-won marginal fills and help reduce the thickness of aggregate layers (and hence use fewer materials), while improving overall pavement performance.

Triax-glenchamber windfarm

Tensar TriAx geogrid enabled construction of access roads over very weak peat at the Glenchamber Wind Farm in Scotland.

Of course, there is no getting away from the fact that geogrids are made from plastic but it is important to note that the polypropylene used in their manufacture is chemically-inert, does not degrade and can be recycled at the end of a road’s operational life.

Delivering robust and long-lasting infrastructure
Full-scale field testing has demonstrated that mechanically stabilised aggregate layers deliver more robust and longer-lasting road pavements, increasing traffic capacity by up to six times that of traditional designs.

This will obviously help reduce the maintenance and repair burden on owners and operators, further strengthening the argument that geogrids should be at the heart of helping to meet the Government’s drive for a roads network that is greener, sustainable and delivers value for money.



We’re here to help
Finding solutions that reduce construction costs and deliver added value is our top priority. Please get in touch to discuss how we can help you save money, speed up construction and extend the operating life of your infrastructure on your next project.
